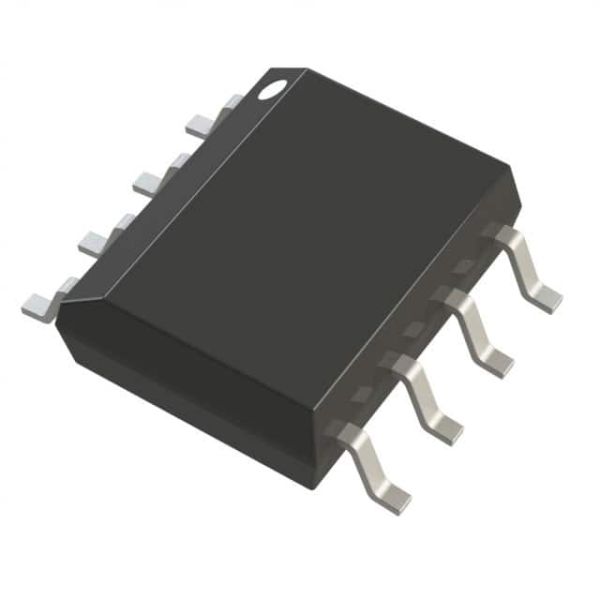

REF193GSZ-REEL Power Management ICs Precision Shunt Voltage Reference
Premium Products
REF193GSZ-REEL Power Management ICs Precision Shunt Voltage Reference
Brand Name :Analog Devices
Model Number :REF193GSZ-REEL
Place of Origin :Taiwan
MOQ :1
Price :Contact us
Payment Terms :L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :Contact us
Delivery Time :In stock
Packaging Details :Standard / New / Original
Mounting Style :SMD / SMT
Package / Case :SOIC-8
Temperature Coefficient :5 PPM / C
Packaging :Reel
Brand :Analog Devices
Contact Now
REF193GSZ-REEL / SOIC-8 / Connectors
FEATURES
Temperature coefficient: 5 ppm/°C maximum
High output current: 30 mA
Low supply current: 45 μA maximum
Initial accuracy: ±2 mV maximum1
Sleep mode: 15 μA maximum
Low dropout voltage
Load regulation: 4 ppm/mA
Line regulation: 4 ppm/V
Short-circuit protection
APPLICATIONS
Portable instruments
ADCs and DACs
Smart sensors
Solar powered applications
Loop-current-powered instruments
GENERAL DESCRIPTION
The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy.
The REF19x series is made up of micropower, low dropout voltage (LDV) devices, providing stable output voltage from supplies as low as 100 mV above the output voltage and consuming less than 45 μA of supply current. In sleep mode, which is enabled by applying a low TTL or CMOS level to the SLEEP pin, the output is turned off and supply current is further reduced to less than 15 μA.
The REF19x series references are specified over the extended industrial temperature range (−40°C to +85°C) with typical performance specifications over −40°C to +125°C for applications, such as automotive.
All electrical grades are available in an 8-lead SOIC package; the PDIP and TSSOP packages are available only in the lowest electrical grade.
Product Attribute
Attribute Value
Analog Devices Inc.
Product Category:
Voltage References
SMD/SMT
SOIC-8
Shunt Precision References
3 V
0.07 %
5 PPM / C
18 V
30 mA
- 40 C
+ 85 C
REF193
Reel
Cut Tape
MouseReel
Accuracy:
15 PPM/mA
Brand:
Analog Devices
Height:
1.5 mm (Max)
Input Voltage:
18 V
Length:
5 mm (Max)
Load Regulation:
15 PPM/mA
Output Current:
30 mA
Product:
Voltage References
Product Type:
Voltage References
Factory Pack Quantity:
2500
Subcategory:
PMIC - Power Management ICs
Topology:
Shunt References
Width:
4 mm (Max)
Unit Weight:
0.019048 oz
